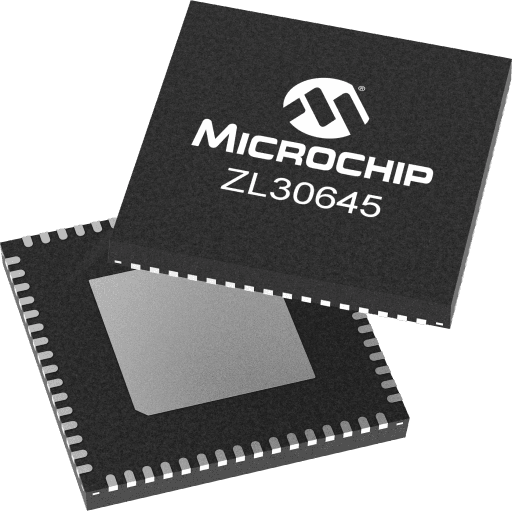

Microchip ZL30645LDG1

Manufacturer No:

ZL30645LDG1

Manufacturer:

Microchip

Package:

Description:

Line Card Timing IC with up to 5 Channels

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30645LDG1 information

Microchip ZL30645LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30645LDG1.

Type
Parameter

5G Product
Yes

Wireline
Yes

DataCenter
Yes

SmartGrids
Yes

LineCard
Yes

Inputs
5D/10SE

Diff. Outputs
10

Jitter (fs)
100

Download datasheets and manufacturer documentation for Microchip ZL30645LDG1.

Product Brief:

bfac50bf8d5de0f03e10dba68d1d741c.pdf

The ZL30645 is a feature-rich line card solution with up to eight independent DPLLs and five extremely low output jitter synthesizers. This solution is ideal for line card timing applications such as routers, switches, optical transparent network and 4G/5G wireless base stations.

We also have ZL3063x as SyncE Timing Card Synchronizer, such as ZL30634A, or ZL3073x as SyncE&1588 Timing Card Synchronizer, such as ZL30735A, to form full SyncE&IEEE1588 Timing solution.

Ultra Precise Timing for 5G Radio Access Networks
Five independent DPLL clock channels plus three additional DPLLs for NCO Hybrid, Split XO and redundant oscillator modes
Five output synthesizers
Any-to-any frequency conversion per channel
Inputs: up to 10, differential or single-ended
Outputs: up to 10 differential, up to 20 CMOS
Output jitter 100 fs RMS typical for 156.25 MHz 12 kHz to 20 MHz
Core power consumption <0.9W

Hitless reference switching

Automatic self-configuration at power-up from internal Flash memory, 7 configurations
Input-to-output alignment <100 ps
Numerically controlled oscillator behavior in each DPLL and each synthesizer
Easy-to-configure design requires no external VCXO or loop filter components
5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
SPI or I2C processor Interface
1.8V and 3.3V core VDD voltages
Easy-to-use evaluation/programming software

User Guide

PURCHASE
