Microchip ZL30934ALDG1

Manufacturer No:

ZL30934ALDG1

Manufacturer:

Microchip

Package:

Description:

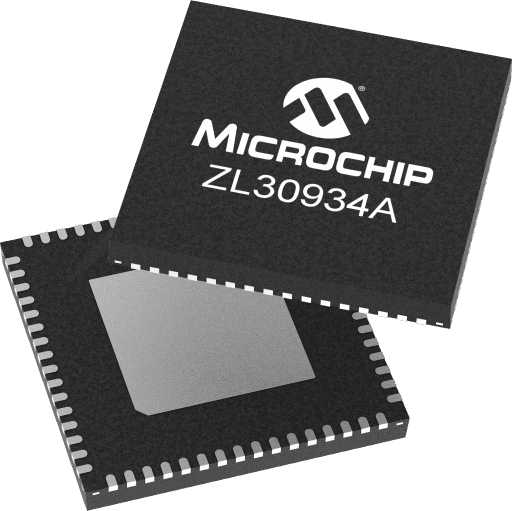

PTP and SyncE Network Synchronizer with up to 4 Independent Channels

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30934ALDG1 information

Microchip ZL30934ALDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30934ALDG1.

Type
Parameter

5G Product
Yes

DataCenter
No

FiveGRAN
Yes

IEEE1588
Yes

SmartGrids
No

SyncE
Yes

Wireline
Yes

Download datasheets and manufacturer documentation for Microchip ZL30934ALDG1.

Application Notes:

f25eb2045c3116e12d6c398ab16fe044.pdf

The ZL30934A is a feature-rich network synchronization solution with up to seven independent DPLLs and five extremely low output jitter synthesizers combined with IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithm software modules. This solution is ideal for 5G Small Cell applications where Synchronous Ethernet (SyncE) and IEEE1588/PTP compliance is needed.

Another device in this family is ZL30833A which is targeted for 5G Small Cell SyncE timing applications.

Click here for the list of supported IEEE 1588-2008 PTP Profiles and Equipment Clock Specifications.

Combined with IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithm software modules
Ultra Precise Timing for 5G Radio Access Networks
Four independent DPLL clock channels plus three additional DPLLs for NCO Hybrid, Split XO and redundant oscillator modes
Five output synthesizers
Any-to-any frequency conversion per channel
Inputs: up to 10, differential or single-ended
Outputs: up to 10 differential, up to 20 CMOS
Output jitter 100 fs RMS typical for 156.25 MHz 12 kHz to 20 MHz
Core power consumption <0.9W

Physical-layer compliance with ITU-T G.8262, G.8262.1, G.813, G.812, Telcordia GR-1244, GR-253
Packet-timing compliance with ITU-T G.8261, G.8263, G.8273.2 (class A,B,C,D), G.8273.4
Enables 5G wireless applications with sub-100 ns time/phase alignment requirements
Hitless reference switching

Automatic self-configuration at power-up from internal Flash memory, 7 configurations
Input-to-output alignment <100 ps
Numerically controlled oscillator behavior in each DPLL and each synthesizer
Easy-to-configure design requires no external VCXO or loop filter components
5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
SPI or I2C processor Interface
1.8V and 3.3V core VDD voltages
Easy-to-use evaluation/programming software
