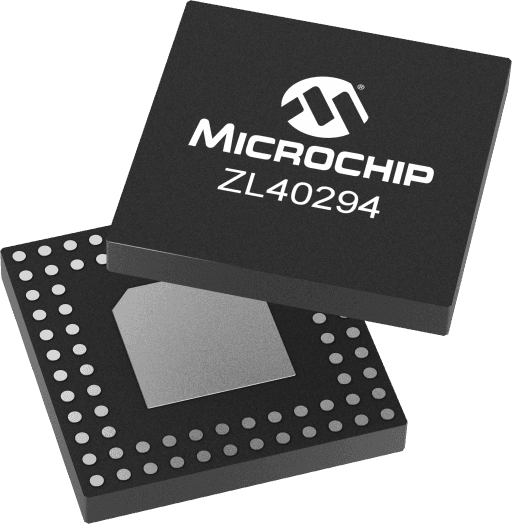

Microchip ZL40294LDX6

Manufacturer No:

ZL40294LDX6

Manufacturer:

Microchip

Package:

Description:

DB2000QL Low Jitter, Low Power PCIe Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL40294LDX6 information

Microchip ZL40294LDX6 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL40294LDX6.

Type
Parameter

Description
Fanout Buffer

Input
LVCMOS/HCSL

Output
HCSL

Supply Voltage
3.3

Max Freq (GHz)
0

Icc (mA)
0

Max Within Device Skew (ps)
50

OE
True

Input Mux
False

Number Of Outputs
0

PCIe Gen
1,2,3,4,5,6

Buffer Type
PCIe Fanout

Fanout
1:20

Download datasheets and manufacturer documentation for Microchip ZL40294LDX6.

The ZL40294 is part of a family of high-performance, ultra-low jitter, low power 1 to 20 HCSL fanout buffers. The ZL40294 is fully compliant to the DB2000QL standard. Applications include PCI Express generation 1/2/3/4/5/6 clock distribution , Intel QPI Servers , Storage and Data Centers, Switches and Routers

Fully Compliant with Intel DB2000QL Specification

20 Low-Power Push-Pull HCSL PCIe Outputs

Ultra-low additive jitter: 14fs RMS typical in DB2000QL band

Supports clock frequencies from 0 to 250MHz

Supports 3.3V power supplies

Embedded Low Drop Out (LDO) Voltage regulator provides superior Power Supply Noise Rejection

Maximum output to output skew of 50ps

SMBus Interface

Side-Band Interface (SBI)

Eight OE pins

Embedded series termination resistors for 85O differential transmission line

Transparent for Spread Spectrum Clock

Supports Latest PCIe Gen 5.0 and Gen 6.0 Spec
