Ohm’s Law Calculator

AIChipLink’s Ohm’s Law Calculator helps engineers and students quickly calculate resistance, current, voltage, and power in an electrical circuit. Simply enter any two known values, and the calculator will instantly compute the remaining parameters. This fast and easy-to-use online tool illustrates the fundamental relationship between voltage, current, and resistance, making it essential for circuit design, troubleshooting, and electronics learning.

Ohms Law Calculator

V
A
Ω
W

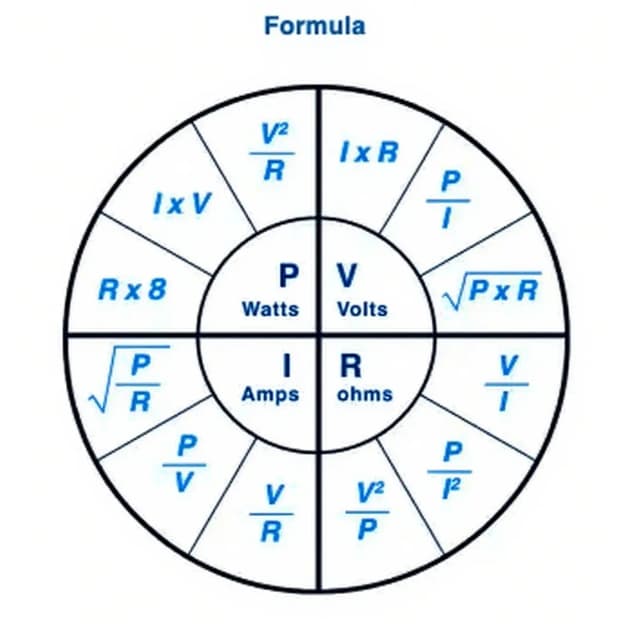

Ohm's law formulas wheel

Introduction

An ohms law calculator lets you find voltage, current, resistance, or power fast. You can use it in lots of ways. For example, you can check if a circuit is overloaded. You can also use it when you plan motor circuits. Here are some ways professionals use it:

Application Description
Checking home circuits for overload and planning kitchens
Planning LED upgrades and checking driver efficiency
Looking at voltage drop for far buildings and long wires
Designing motor circuits and checking three-phase systems

Many people get voltage, current, and resistance confused. You will learn how to stop making these mistakes by using step-by-step examples.

Key Takeaways

  • An Ohm's Law calculator helps you find voltage, current, resistance, or power fast. It saves you time and work.

  • You can use the calculator to see if a circuit has too much load. You can also use it to plan electrical projects. This helps keep things safe and working well.

  • Type in two values you know. Pick the right units. The calculator gives you the missing value right away. This makes solving problems easier.

  • Knowing how voltage, current, and resistance work together helps you make safe circuits. It also helps you pick the right materials.

  • Using an Ohm's Law calculator makes learning easier. It gives clear answers and helps you understand electrical ideas.

Ohms Law Calculator

What It Does

An ohms law calculator helps you solve for voltage, current, resistance, or power in a circuit. You enter two values, like voltage and resistance. The calculator finds the missing value, such as current. You do not need to remember formulas or do math yourself. The calculator checks if your circuit can handle a new device. It also shows if you need thicker wires for long distances. You can use it to pick the right circuit size, figure out energy use, and check voltage drop.

Here is a table that lists the main things an ohms law calculator can do:

FunctionalityDescription
Determine maximum circuit capacityFind the biggest device or number of lights a circuit can safely handle.
Calculate energy usageSee how much energy your devices use and guess the cost.
Size electrical circuitsPick the right wire size and heater for your outlets.
Voltage drop calculationCheck voltage drop, wire size, and the longest wire you can use.

You can use the calculator for quick checks at home. It also helps you plan bigger projects at work.

Key Features

Most ohms law calculators are easy to use. You enter two values, like voltage and current. The calculator gives you resistance or power. You can pick units you want, such as volts, amps, or ohms. The tool works for students and professionals.

  • There are three simple boxes for voltage, current, and resistance.

  • You press one button to get the answer fast.

  • You can use the calculator on your phone or computer.

  • You learn electrical basics and see how theory matches real circuits.

  • You get clear answers that help you solve problems.

Students use the calculator to learn about electricity and feel more confident. Professionals use it for quick and correct results at work. You can trust the calculator for both easy and hard jobs.

Using the Ohm’s Law Calculator

Input Values

When you use an ohms law calculator, you start by typing in numbers you already know. Most calculators need two out of three main values. These are voltage, current, and resistance. You pick which value you want to find. Then you enter the other two values. This lets the calculator figure out the missing number.

Here is a table that lists the usual input values:

Input ValueDescription
Voltage (V)The electrical potential difference.
Current (I)The flow of electric charge.
Resistance (R)The opposition to current flow.
  • Pick the value you want to solve for.

  • Type in two values from voltage, current, or resistance.

  • Press the calculate button to see your answer.

You can use the calculator for easy home circuits or for school work. If you know voltage and current, you can find resistance. If you know current and resistance, you can find voltage. This makes solving problems faster and less confusing.

Select Units

After you put in your numbers, you need to choose the right units. Units show how big or small your numbers are. Most calculators let you pick from different choices for each value. This step helps make sure your answer is right and simple to read.

Here is a table of common units you can pick:

ParameterAvailable Units
Voltage (V)Volts [V], Kilovolts [kV], Millivolts [mV]
Current (I)Amperes [A], Milliamperes [mA]
Resistance (R)Ohms [Ω], Kiloohms [kΩ], Megaohms [MΩ]
Power (P)Watts [W], Kilowatts [kW], Megawatts [MW]
  1. Type your known values into any two boxes.

  2. Pick the correct unit for each value from the dropdown.

  3. Press the calculate button to get your answer.

  4. The calculator will show the missing value using the units you picked.

Choosing the right units helps you not make mistakes. For example, if you use milliamps instead of amps, your answer will be 1,000 times smaller. Always check your units before you solve the problem.

Get Results

After you enter your numbers and pick your units, the calculator gives you the answer right away. Many calculators show you each step. This helps you see how the answer was found. You can learn how voltage, current, and resistance work together in a circuit.

The answers you get depend on how good your numbers are and how good the calculator is. Good calculators use exact formulas. They work best when you use good measurements. Sometimes, things like temperature or humidity can change your results. If you use the calculator for important work, make sure your tools are correct and taken care of.

Evidence TypeDescription
Calibration and MaintenanceRegular calibration and maintenance are essential for reliable results in Ohm's Law calculations.
Environmental FactorsConditions like temperature and humidity can significantly impact measurement accuracy.
Instrument PrecisionHigh-quality instruments reduce measurement errors, leading to more dependable results.

Tip: Ohm's Law calculators work best for simple circuits with metal wires and steady resistance. They may not give correct answers for complex circuits or special materials. If you work with advanced electronics, check if the calculator fits your needs.

You can use the calculator for quick homework checks or for planning real projects. The fast answers help you learn and solve problems quicker.

Ohm’s Law

The Formula

You use ohm’s law to understand how electricity moves in a circuit. Georg Simon Ohm, a German physicist, first introduced this law in 1825. He discovered that the amount of current flowing through a wire depends on the voltage and resistance. The main formula is:

V = I × R

Here, V stands for voltage, I stands for current, and R stands for resistance. This equation shows that if you increase the voltage, the current also increases. If you increase the resistance, the current decreases. You can use an ohms law calculator to solve for any of these values quickly.

Ohm’s law helps you predict how a circuit will behave when you change voltage or resistance.

Voltage, Current, Resistance

You see three important quantities in ohm’s law: voltage, current, and resistance. Each one has a special role in a circuit.

QuantitySymbolUnit
VoltageVVolts
CurrentIAmperes (A)
ResistanceROhms (Ω)
PowerPWatts (W)
  • Voltage is the push that moves electric charges.

  • Current is the flow of those charges through wires.

  • Resistance is what slows down the flow.

If you keep voltage the same and increase resistance, current goes down. For example, if resistance doubles, current is cut in half. This relationship helps you design safe circuits and choose the right materials.

Power Calculation

You can also use ohm’s law to find power in a circuit. Power tells you how much energy is used every second. The basic formula is:

P = V × I

You can rewrite this formula using ohm’s law:

  • Substitute V = I × R into P = V × I to get P = I × (I × R) = I²R.

  • You can also use P = V²/R if you know voltage and resistance.

These formulas let you find power in different ways. You use watts (W) as the unit for power. When you plan a project, you check power to make sure your devices do not overload the circuit.

Tip: Use an ohms law calculator to check power, voltage, current, and resistance before you build or fix a circuit.

Examples

Find Current

You can use ohm’s law to find the current in a circuit if you know the voltage and resistance. Follow these steps:

  1. Write down the voltage and resistance. For example, voltage = 12 volts, resistance = 600 ohms.

  2. Use the formula: I = V / R.

  3. Plug in the numbers: I = 12 V / 600 Ω.

  4. Do the math: I = 0.02 A (which is the same as 20 milliamps).

You can see how ohm’s law helps you find the current quickly when you know the other two values.

Find Voltage

Ohm’s law also lets you find voltage if you know the current and resistance. The formula is simple: V = I × R.

  • Suppose you have a current of 5 amperes and a resistance of 8 ohms.

  • Multiply the two: V = 5 A × 8 Ω = 40 V.

You can use this method for any circuit. Just remember to use the right units.

Find Resistance

You can find resistance if you know the voltage and current. Here are two examples:

  • If a hairdryer uses 220 volts and 11 amperes, calculate resistance: R = 220 V / 11 A = 20 Ω.

  • For a lamp with 24 volts and 6 amperes: R = 24 V / 6 A = 4 Ω.

Try this with your own devices at home to see how resistance changes with different values.

Find Power

You can use ohm’s law to find power in a circuit. The formula is P = V × I. Here is a table to help you:

FormulaExample Calculation
P = V × I10 V × 2 A = 20 W

A 100-watt light bulb uses 100 watts of power when it is on. If you have a 12-volt supply and a resistance of 100 ohms, first find the current: I = 12 V / 100 Ω = 0.12 A. Then, calculate power: P = 12 V × 0.12 A = 1.4 W.

Use these steps to check if your devices use too much power for your circuit.

Other Calculators

When you work with circuits, you might need more than one calculator. Many calculators help you solve different problems in electronics. These tools let you check your answers and plan bigger projects.

  • Parallel and Series Resistor Calculator: Find the total resistance when resistors are in series or parallel.

  • PCB Trace Width Calculator: Make sure circuit board traces can carry current without getting too hot.

  • Reactance Calculator: See how capacitors and inductors change your circuit at different frequencies.

  • Series and Parallel Capacitor Calculator: Figure out the total capacitance for capacitors in series or parallel.

  • Voltage Divider Calculator: Quickly find the output voltage in a voltage divider circuit.

You can also use a resistor color code calculator. This tool helps you read the colored bands on resistors and find their values. The table below shows how this calculator works with an ohm’s law calculator:

Calculator TypeFunctionality
Resistor Color Code CalculatorFinds resistance value by reading color bands.
Ohm's Law CalculatorCalculates voltage, current, and resistance in circuits.

These calculators make your work easier and help you avoid mistakes. You can use them together to solve real-world problems.

Learning Resources

You can learn more about ohm’s law and electronics by using online resources. Many websites and courses have lessons, videos, and practice tools. These resources help you understand the basics and let you try what you learn.

  • Digi-Key Learning Resources: This forum covers many topics in electronics. You can find discussions about ohm’s law, calculators, and tips for beginners.

  • OpenLearn Course on Ohm's Law: This course gives you a full introduction to electronics. You will find sections that focus on ohm’s law and simple circuits.

Interactive tutorials help you learn better than just reading. The table below shows different types of learning tools you can use:

Resource TypeDescription
Video TutorialLets you practice ohm’s law concepts and see how they work in real time.
Lesson NotesGives you clear steps to follow and helps you remember key ideas.
Additional Learning ToolsOffers hands-on practice so you can apply what you learn.
Teacher ResourcesHelps teachers explain ohm’s law and make lessons more interesting.
Slides from the VideoLets you review important points at your own pace.

You can use these resources to build your skills and feel more confident with electronics. When you use calculators and learning tools together, you get a better understanding of ohm’s law and how to use it in real circuits.

Using an Ohm’s Law calculator helps you solve electrical problems fast. You get answers quickly and they are correct. This saves you time and helps you not make mistakes. The table below lists the main benefits:

BenefitDescription
AccuracyGives exact answers using the Ohm’s Law formula.
Ease of UseHas a simple design for both new and skilled users.
Time-SavingDoes the math for you and lowers mistakes.
VersatilityCan be used in school, engineering, and farming technology.

You can use this tool to design circuits, fix problems, check power, and learn. Try the calculator to make your work easier and more dependable.

Frequently Asked Questions

What is the difference between voltage, current, and resistance?

Voltage pushes charges through wires. Current is how charges move. Resistance makes it harder for charges to move. An ohms law calculator shows how these three work together.

Can I use an ohm’s law calculator for any type of circuit?

You can use an ohms law calculator for simple circuits. It works best when resistance does not change. It may not work for circuits with special materials. Always check if your circuit matches what the calculator can do.

Why do I need to enter two values in the ohms law calculator?

You enter two values so the calculator can find the third. Ohm’s law links voltage, current, and resistance. The calculator uses this rule to solve for the missing value.

How does the ohms law calculator help with power calculations?

The calculator finds power using voltage and current. You can also use resistance and one other value. This helps you check if your devices use too much power.
