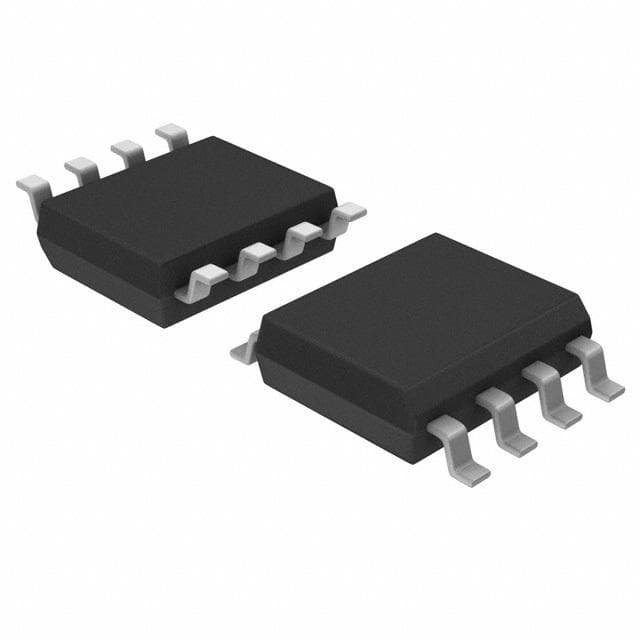

Active-Semi ACT2103YH-T

Manufacturer No:

ACT2103YH-T

Manufacturer:

Active-Semi

Package:

SOIC

Description:

8-Pin DC DC Voltage Regulator 1 Outputs 310kHz Tape & Reel (TR) 3A SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACT2103YH-T information

Active-Semi ACT2103YH-T technical specifications, attributes, parameters and parts with similar specifications to Active-Semi ACT2103YH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Weight
850.995985mg

Packaging
Tape & Reel (TR)

Published
2012

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Number of Outputs
1

Output Type
Adjustable

Min Supply Voltage
4.5V

Operating Supply Current
750μA

Output Configuration
Positive

Current - Output
3A

Max Output Voltage
12V

Voltage - Output
12V

Min Input Voltage
4.5V

Frequency - Switching
310kHz

Max Input Voltage
18V

Synchronous Rectifier
Yes

Min Output Voltage
923mV

Height
1.75mm

Length
5.1mm

Width
4mm

Download datasheets and manufacturer documentation for Active-Semi ACT2103YH-T.

Datasheets:

activesemi-act2103yht-datasheets-1574.pdf

ACT2103YH-T Overview

It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package. For space-saving purposes, this voltage regulator is available in the SOIC package. A total of 1 outputs are configured in this voltage regulator. On the output pins of this DC DC switching regulator, there is a Adjustable output generated. Voltage regulator's switching frequency reaches 310kHz. DC DC switching regulator's 3A output current allows for maximum design flexibility. The switching regulator operation of the system is controlled by 8 pins. In order to use this voltage regulator 12v at its full potential, the output voltage should be kept at at least 923mV. The maximum voltage of voltage regulator 12v DC DC switching regulator can produce is 12V, which is the highest available. By requiring a minimum voltage of 4.5VV, adjusting voltage regulator reliable performance is guaranteed. 85°C allows switching regulator's stable operation at a high limit of maximum operating temperature. Reliability is ensured by operating at -40°C, the DC DC switching regulator's minimum operating temperature. A dc to dc voltage regulator's minimum input voltage of 4.5V is supported by the voltage regulator. The DC-DC switching regulator is designed to operate at its maximum input voltage. DC-DC switching regulators operate with 750μA supply currents. DC DC switching regulator's output voltage of 12V is available.
