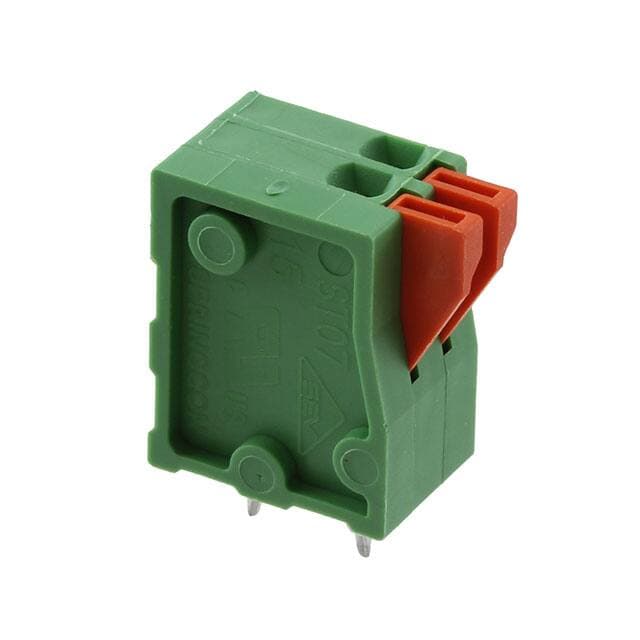

METZ CONNECT USA Inc. AST0820206

Manufacturer No:

AST0820206

Manufacturer:

Package:

Description:

0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AST0820206 information

METZ CONNECT USA Inc. AST0820206 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. AST0820206.

Type
Parameter

Factory Lead Time
15 Weeks

Mounting Type
Through Hole

Housing Material
Polyamide (PA66), Nylon 6/6

Contact Material - Plating
Copper Alloy - Tin Plated

Clamp Material - Plating
Steel

Operating Temperature
-40°C~105°C

Packaging
Bulk

Feature
Push Button Actuated

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

ECCN Code
EAR99

Color
Green

HTS Code
8536.69.40.40

Pitch
0.100 2.54mm

Wire Gauge
20-26 AWG

Voltage
150V

Number of Levels
1

Current
6A

Terminal and Terminal Block Type
STRIP TERMINAL BLOCK

Positions Per Level
2

Mating Orientation
Vertical with Board

Wire Termination
Screwless - Spring Cage, Tension Clamp

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. AST0820206.

AST0820206 Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There are a number of advantages to its Push Button Actuated feature.As a result, the device runs at -40°C~105°C Operating Temperature.

AST0820206 Features

AST0820206 Applications

There are a lot of METZ CONNECT USA Inc.
AST0820206 Terminal Blocks applications.

Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
