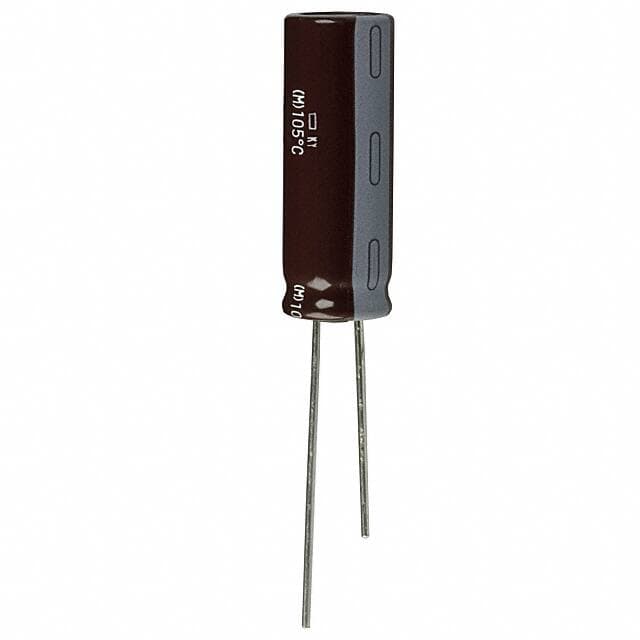

United Chemi-Con EKY-500ELL471MJ30S

Manufacturer No:

EKY-500ELL471MJ30S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 470?F Capacitor ±20% Bulk Through Hole 1.69A 0.394Dia 10.00mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-500ELL471MJ30S information

United Chemi-Con EKY-500ELL471MJ30S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-500ELL471MJ30S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2010

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
470?F

Voltage - Rated DC
50V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
7000 Hrs @ 105°C

Ripple Current
1.69A

Polarization
Polar

Life (Hours)
7000 hours

Impedance
43mOhm

Ripple Current @ High Frequency
1.69A @ 100kHz

Dissipation Factor
0.1 %

Lead/Base Style
Straight

Height Seated (Max)
1.181 30.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-500ELL471MJ30S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

unitedchemicon-eky500ell471mj30s-datasheets-4169.pdf

unitedchemicon-eky500ell471mj30s-datasheets-4170.pdf

unitedchemicon-eky500ell471mj30s-datasheets-4171.pdf

EKY-500ELL471MJ30S Overview

As far as the ripple current is concerned, it is 1.69A @ 100kHz at full charge.As far as the ripple current is concerned, it is 845mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.181 30.00mm.It operates from a 0.1 % dissipation factor.This capacitor operates from a voltage - Rated DC of 50V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

EKY-500ELL471MJ30S Features

the ripple current is 1.69A @ 100kHz.
the ripple current is 845mA @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

EKY-500ELL471MJ30S Applications

There are a lot of United Chemi-Con
EKY-500ELL471MJ30S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
