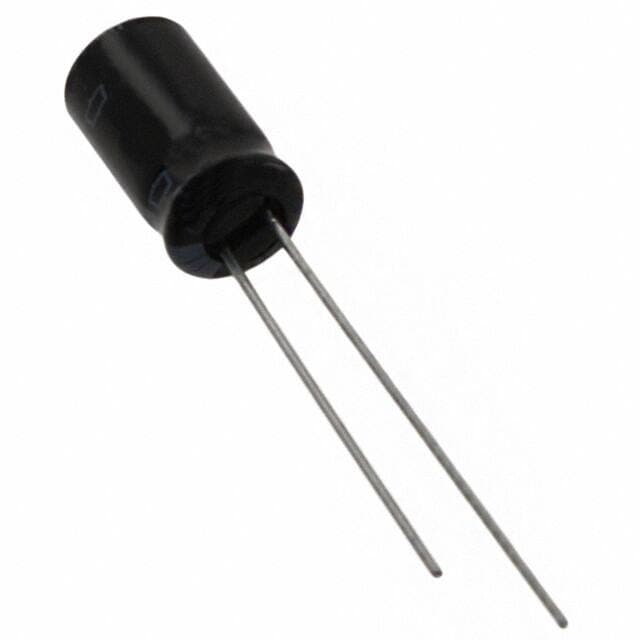

United Chemi-Con ESMG250ELL101MF11D

Manufacturer No:

ESMG250ELL101MF11D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

SMG 100?F Capacitor ±20% Bulk Through Hole 190mA 0.248Dia 6.30mm -40°C~85°C Polar 2.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ESMG250ELL101MF11D information

United Chemi-Con ESMG250ELL101MF11D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ESMG250ELL101MF11D.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
SMG

Published
2001

Size / Dimension
0.248Dia 6.30mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
100?F

Voltage - Rated DC
25V

Lead Pitch
2.5mm

Lead Spacing
0.098 2.50mm

Lead Diameter
500 ?m

Lifetime @ Temp
2000 Hrs @ 85°C

Ripple Current
190mA

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
190mA @ 120Hz

Ripple Current @ High Frequency
285mA @ 100kHz

Diameter
6.3mm

Height
11mm

Height Seated (Max)
0.492 12.50mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con ESMG250ELL101MF11D.

Datasheets:

unitedchemicon-esmg500ell100me11d-datasheets-2322.pdf

ESMG250ELL101MF11D Overview

Full charge should result in a ripple current of 285mA @ 100kHz.If the charge is low, ripple current is 190mA @ 120Hz.Keep your seated height below 0.492 12.50mm.A voltage of 25V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

ESMG250ELL101MF11D Features

the ripple current is 285mA @ 100kHz.
the ripple current is 190mA @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~85°C

ESMG250ELL101MF11D Applications

There are a lot of United Chemi-Con
ESMG250ELL101MF11D applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
