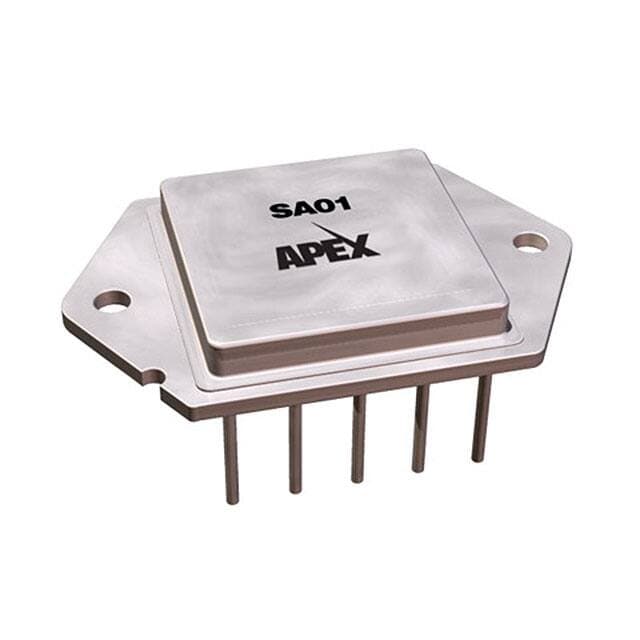

APEX SA01-4

Manufacturer No:

SA01-4

Manufacturer:

APEX

Package:

10-PowerDIP Module

Description:

Bulk 10-PowerDIP Module PWM 16V~100V Through Hole 150°C TJ DC Motors, General Purpose Half Bridge (2) Inductive 16V~100V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA01-4 information

APEX SA01-4 technical specifications, attributes, parameters and parts with similar specifications to APEX SA01-4.

Type
Parameter

Factory Lead Time
9 Weeks

Mounting Type
Through Hole

Package / Case
10-PowerDIP Module

Operating Temperature
150°C TJ

Packaging
Bulk

Series
Apex Precision Power®

Published
2017

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
DC Motors, General Purpose

Technology
Power MOSFET

Voltage - Supply
16V~100V

Interface
PWM

Output Configuration
Half Bridge (2)

Voltage - Load
16V~100V

Current - Output / Channel
20A

Fault Protection
Current Limiting, Over Temperature

Rds On (Typ)
250m ? LS + HS

Current - Peak Output
30A

Load Type
Inductive

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SA01-4.

SA01-4 Overview

Bulk is used to package H bridge.As a cost-saving measure, H bridge is included in the 10-PowerDIP Module package.Reliabilbridge drivery can be improved by increasing 16V~100V's supply voltage.Through Hole is mounted on H bridge circuit.150°C TJ is able to function normally at motor driver H bridges operating temperature.There are a variety of applications for H bridge motor driver, including DC Motors, General Purpose.This is a type of electronic H-bridge that belongs to the Apex Precision Power® series.When the output reaches 30A, a maximum current is reached.
