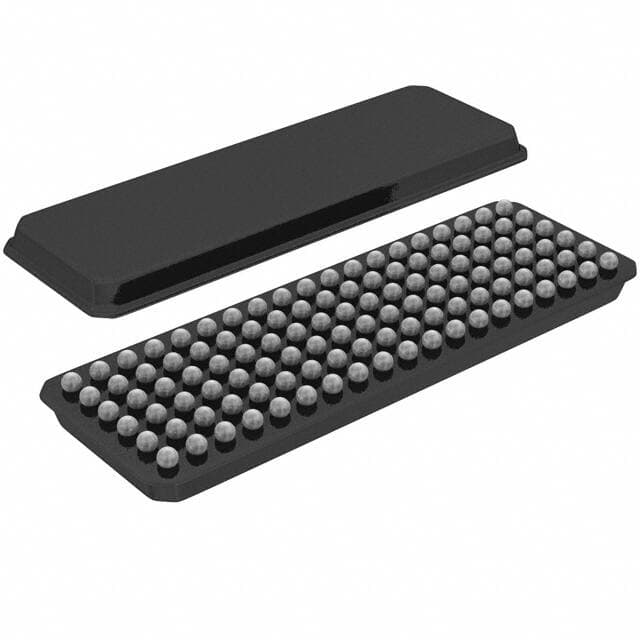

TI SN74SSTV32852GKFR

Manufacturer No:

SN74SSTV32852GKFR

Manufacturer:

Package:

PLASTIC, BGA-114

Description:

Description: 24-Bit to 48-Bit Registered Buffer with SSTL_2 Inputs and Outputs 114-BGA MICROSTAR 0 to 70

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74SSTV32852GKFR information

TI SN74SSTV32852GKFR technical specifications, attributes, parameters and parts with similar specifications to TI SN74SSTV32852GKFR.

Type
Parameter

RoHS Status
Non-RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
TEXAS INSTRUMENTS INC

Part Package Code
BGA

Package Description
PLASTIC, BGA-114

Pin Count
114

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Texas Instruments

Family
SSTV

JESD-30 Code
R-PBGA-B114

JESD-609 Code
e0

Length
16 mm

Logic IC Type
D FLIP-FLOP

Max Frequency@Nom-Sup
200000000 Hz

Max I(ol)
0.02 A

Moisture Sensitivity Level
3

Number of Bits
24

Number of Functions
1

Number of Terminals
114

Operating Temperature-Max
70 °C

Output Characteristics
3-STATE

Output Polarity
TRUE

Package Code
LFBGA

Package Equivalence Code
BGA114,6X19,32

Package Shape
RECTANGULAR

Package Style
GRID ARRAY, LOW PROFILE, FINE PITCH

Packing Method
TR

Peak Reflow Temperature (Cel)
220

Prop. Delay@Nom-Sup
3.1 ns

Propagation Delay (tpd)
3.1 ns

Qualification Status
Not Qualified

Seated Height-Max
1.4 mm

Supply Voltage-Max (Vsup)
2.7 V

Supply Voltage-Min (Vsup)
2.3 V

Supply Voltage-Nom (Vsup)
2.5 V

Surface Mount
YES

Technology
TTL

Temperature Grade
COMMERCIAL

Terminal Finish
TIN LEAD

Terminal Form
BALL

Terminal Pitch
0.8 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
20

Trigger Type
POSITIVE EDGE

Width
5.5 mm

Download datasheets and manufacturer documentation for TI SN74SSTV32852GKFR.

PCN Obsolescence/ EOL:

texasinstruments-sn74lvc573azqnr-pcnobsolescenceeol-9409.pdf

SN74SSTV32852GKFR Overview

Cut Tape (CT) is employed as a way of packaging.It is accessible to the 114-LFBGA package.The voltage of 2.3V~2.7V is supplied to make sure that the device is able to operate normally.It is a type of electronic part mounted in the way of Surface Mount. -40°C~85°C TA is set as its operating temperature.The memory features a size of 24, 48 bits to store information.The electronic parts belonging to the 74SSTV series offer a number of similarities.A number of related parts can be found on the basis of its base part number 74SSTV32852.The number of all component pins adds up to 114.Signals are prevented from reflecting off the end of the transmission line through 114 terminations.It is mounted in the way of Surface Mount.There are 114 pins to form parts of its construction.Normal use can be kept when the minimum supply voltage is kept at 2.3V.Normal use can be kept when the maximum supply voltage is kept at 2.7V.It can be included into the subcategory of Other Logic ICs.The supply voltage of 2.5V works as an important factor for its operation.It is composed of 1 elements.It employs TR for its packing.It operates with the frequency of 200MHz.There are 48 output lines to meet its specific needs.
