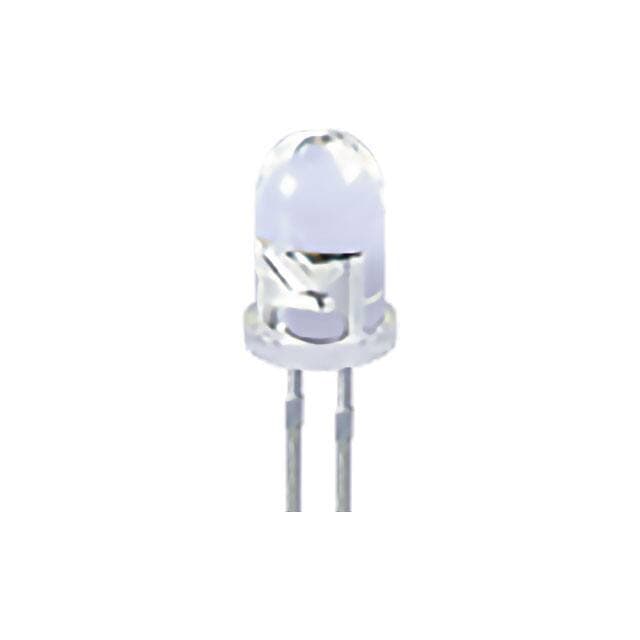

Kingbright WP7113PD1C

Manufacturer No:

WP7113PD1C

Manufacturer:

Kingbright

Package:

Radial

Description:

Through Hole -40°C~85°C Bulk Wavelength: 940nm Radial 170V 6ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WP7113PD1C information

Kingbright WP7113PD1C technical specifications, attributes, parameters and parts with similar specifications to Kingbright WP7113PD1C.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Operating Temperature
-40°C~85°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Viewing Angle
20°

Response Time
6ns

Voltage - DC Reverse (Vr) (Max)
170V

Wavelength
940nm

Spectral Range
420nm ~ 1120nm

Current - Dark (Typ)
10nA Max

Color - Enhanced
Infrared (NIR)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Kingbright WP7113PD1C.

WP7113PD1C Overview

As a protective measure, these photodiodes are packaged in the Bulk. To ensure safety, the photodiodes are packaged in Radial packages. Reverse-bias photodiodes can withstand a maximum of 170V in continuous reverse-bias mode.

WP7113PD1C Features

Moisture Sensitivity Level (MSL): Not Applicable
Operating Temperature: -40°C~85°C
Packaging: Bulk
Spectral Range: 420nm ~ 1120nm
Response Time: 6ns
Viewing Angle: 20°

WP7113PD1C Applications

There are a lot of Kingbright
WP7113PD1C Photodiodes applications.

Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
